Product Numbers:20181220111427
Price:0

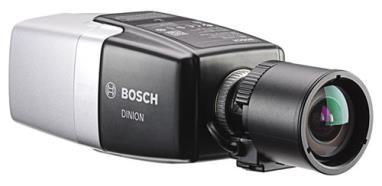

Product introduction:NBN - 63023 - B Fixed Camera 2MP HDR
NBN - 63023 - B Fixed Camera 2MP HDR
Power Consumption
7.2 W max.
Current draw (PoE)
200 mA max.
Current draw (12 VDC)
600 mA max.
Sensor (1080p version)
Sensor type
1/2.8‑inch CMOS
Effective pixels
1920 (H) x 1080 (V); 2MP (approx.)
Starlight sensitivity
(3100K, reflectivity 89%, 1/25, F1.2, 30IRE)
Color
0.0069 lx
Mono
0.0008 lx
Dynamic range – HDR mode
High Dynamic Range (10-bit, 3x exposure)
120 dB WDR
Measured according to IEC 62676 Part 5
110 dB WDR
Video streaming
Video compression
H.264 (MP); M- JPEG
Streaming
Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
Camera processing latency
<55 ms (max. average at 1080p60)
GOP structure
IP, IBP, IBBP
Encoding interval
1 to 50 [60] ips
Video resolution (H x V)
1080p HD
1920 x 1080 (1080p version only)
Upright mode 1080p
1080 x 1920 (1080p version only)
1.3 MP (5:4)
1280 x 1024 (1080p version only)
720p HD
1280 x 720
Upright mode 720p
720 x 1280
D1 4:3 (cropped)
704 x 480
480p SD
Encoding: 704 x 480; Displayed: 854 x 480
432p SD
768 x 432
288p SD
512 x 288
240p SD
Encoding: 352 x 240; Displayed: 432 x 240
